It is preferred to select a UPS system that matches the load voltage to avoid the need for a step-down transformer, as the transformer can cause output voltage distortion for several reasons:
Non-Linear Load Effects:
- Transformers can introduce non-linear characteristics to the load. When the UPS output feeds into a step-down transformer, the transformer's magnetizing current can create harmonics, leading to voltage distortion.
Inrush Current:
- When a transformer is energized, it draws a significant inrush current. If the UPS is not designed to handle this inrush current, it can lead to voltage dips or distortion.
Impedance Mismatch:
- The impedance of the step-down transformer can differ from what the UPS is designed to modulating PWM signal by internal output LC filter. This mismatch can cause reflections and distortions in the voltage waveform.
Resonance:
- Transformers and the UPS might interact in a way that causes resonance at certain frequencies. This resonance can amplify certain harmonics, leading to voltage distortion.
Load Changes:
- Sudden changes in the load on the transformer can affect the voltage regulation capabilities of the UPS. If the transformer steps down the voltage for a variable load, this can cause fluctuations in the UPS output voltage.
Quality of the Transformer:
- Poor-quality transformers can introduce more losses and distortions. The core material, winding design, and overall construction quality play a significant role in how much distortion is added.
To mitigate these issues, it is important to:
- Ensure the UPS can handle the inrush current of the transformer.
- Use high-quality transformers with recommended K factor and low harmonic distortion.
- Select a UPS system that matches the load voltage to avoid the need for a step-down transformer
- Properly match the transformer impedance with the UPS.

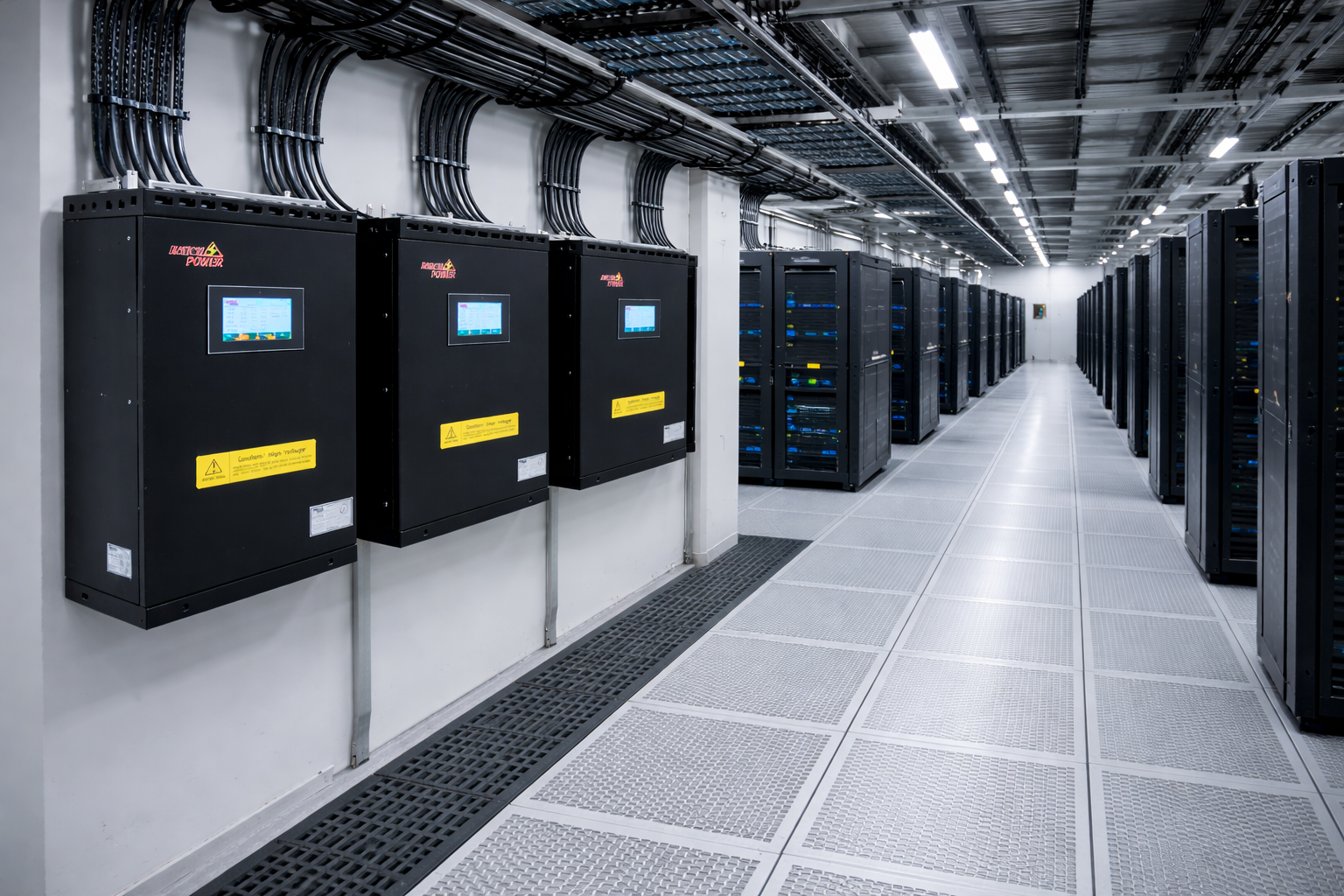

- Implement filtering solutions to reduce harmonics and resonance effects.
